Hospital Elevators

Hospital Manufactures in Mumbai

We manufacture a supreme quality Elevators for medical purpose which is generally used in hospitals as the name suggests and is popular due to its spacious nature and size. It is specially designed to handle stretchers and wheel chairs. It is also jerk and shock free to provide smooth transit to people or patients.


Hospital Elevator is not only used for common purpose of transportation also vertical transport equipment used in hospital and other relevant places to move patients and surgical instruments. VRS Elevators offers Hospital elevator in Auto Door and Manual door operation from Mumbai, India.


Special Features:

  1. Geared Traction Machine
  2. Gearless Traction Machine
  3. VVVF Drive
  4. Regenerative Drive
  5. Auto Rescue Device brings the Passengers to the nearest landing in case of power failure.
  1. The Down Collective / Full Collective Control System
  2. The overload indicator in the Elevator warns the passenger in case the lift has been overloaded.
  3. Elevator is fitted with Flat Panel LED lights in the Cabin, Modern Push Buttons, and Scrolling Dot Matrix LED indicator for Direction, Seven Segment Position Indicators.

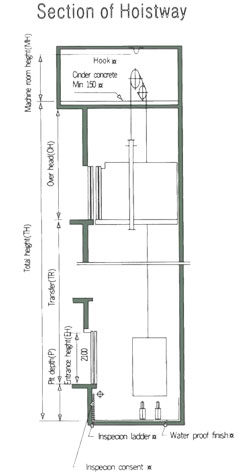

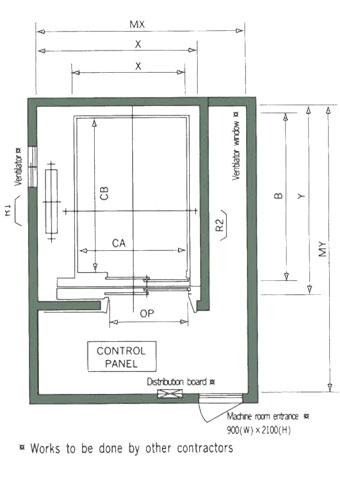

Layout Drawing:
Technical Specification:

Note: Installation of ventilation and duct system are required due to heat generation in machine room.

Hospital Elevator Technical Data
VRS Hospital Elevator Technical Table

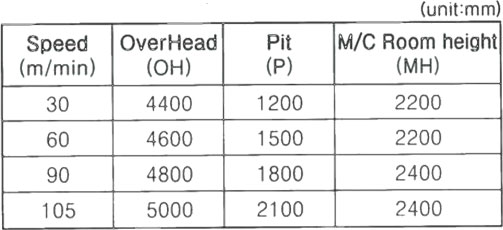

Standard Dimensions & Reactions

Speed(m/min) OverHead(OH) Pit(p) M/C Room height (MH)
30 4400 1200 2200
60 4600 1500 2200
90 4800 1800 2400
105 5000 2100 2400

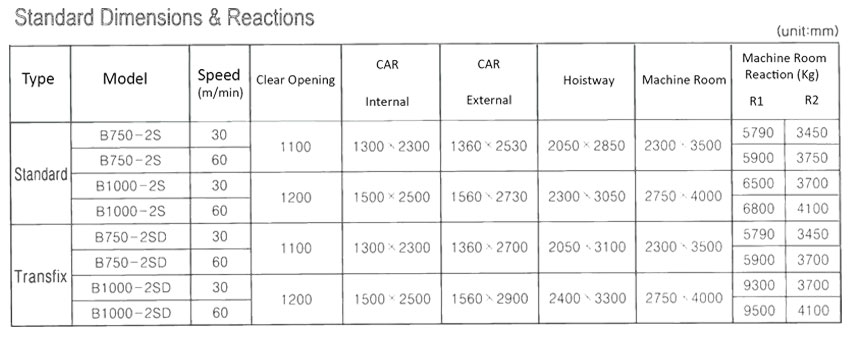

Type Model Speed
(m/min)
Clear opening CAR
Internal
CAR
EXternal
Hoistway Machine Room Machine Room Reaction(kg)
R1 R2
Standard B750-2S 30 1100 1300*2300 1360*2530 2050*2850 2300*3500 5790 3450
B750-2S 60 5900 3750
B1000-2S 30 1200 1500*2500 1560*2730 2300*3050 2750*4000 6500 3700
B1000-2S 60 6800 4100
Transfix B750-2SD 30 1100 1300*2300 1360*2700 2050*3100 2300*3500 5790 3450
B750-2SD 60 5900 3700
B1000-2SD 60 1200 1500*2500 1560*2900 2400*3300 2750*4000 9300 3700
B1000-2SD 60 9500 4100

If you have any questions about any product, please contact technical support by calling +91 93 20021995/ 93 21121996 or you can reach us by info@vrselevators.com anytime.
